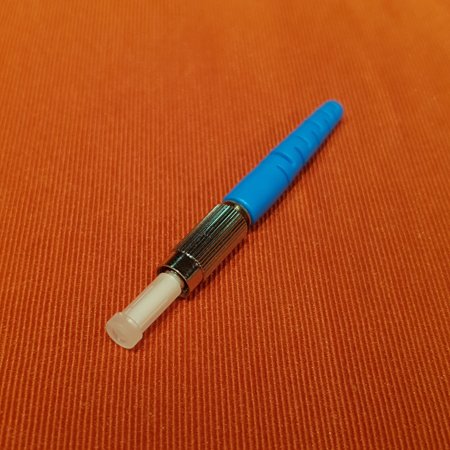

Conector fc/apc 3mm:

Descripción

conector fc/apc 3mm:
technical parameters:
connector: conector fc/apc 3mm:
code: conecfcapc35
hoja dorc: hojadorcapc2.5
ready for: sm
maximun diameter admitted: 1.6mm.- 2mm.-3mm.
ferrules qty.: 1
ferule type: apc 2.5mm – 125µm. con: <0.6µm gender changeable: none gender changeable: -- pin provided: no polarity change: apc (anlged 8°) housing material - flame rating: nickel plated bronze ferule material: zirconia oxide zro2 ferule holes: 1 (one) spring load - tensile strength: 5n - 100n housing color: plated boot color: green boot type: bellcore type il value typical - max: 0.05 / 0.15 (db) rl value typical - max: 65 geometrical parameters: radious of curvaturex min: 5 radious of curvaturex max: 10 radious of curvaturey min: 5 radious of curvaturey max: 0.05 angle x min: 10 angle x max: -0.05 angle y min: 7.8 angle y max: 8.2 roughnessra / roughnessrq: min.: 0 / 0 roughnessra / roughnessrq max.: 20 / 20 coplanarity min.: -0.300 coplanarity max.: 0.300 datafill min.: - datafill max.: - flat deviation min.: - flat deviation max.: - fiber height min.: -150 fiber height max.: 150 dh ave / dh adj : - core dip min.: - core dip max.: - fiber optic roughnessra roughnessrq min.: 0 / 0 fiber optic roughnessra roughnessrq max.: 20 / 20 tiltx -tilty min.:- tiltx -tilty max.:-
